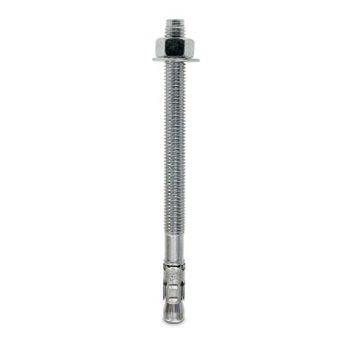

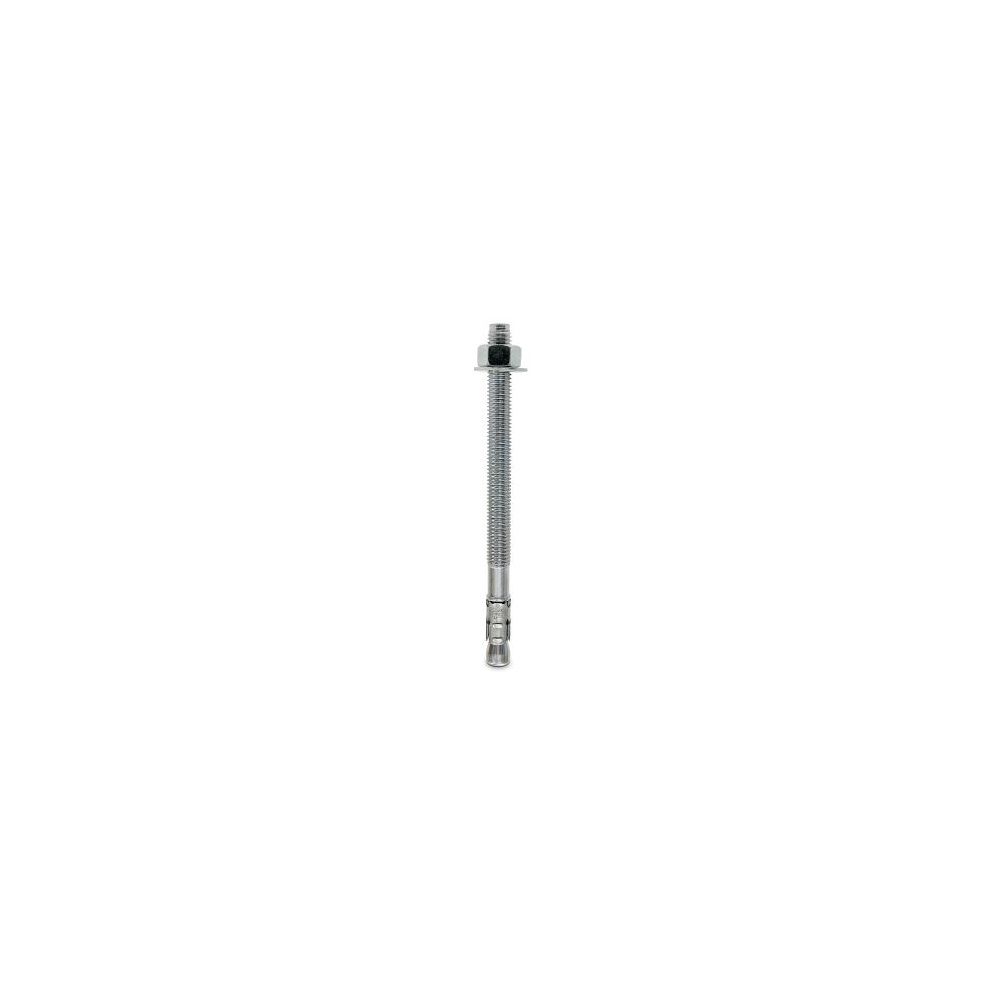

5" length x 3/8" Strong Bolt 2 wedge anchor, zinc plated carbon steel, 3/8" drill bit diameter, 3-9/16" thread length
Component Material Anchor Body: Carbon Steel
Component Material Nut: Carbon Steel ASTM A 563, Grade A
Component Material Washer: Carbon Steel ASTM F844
Component Material Clip: Carbon Steel ASTM A 568
Code listed under IBC/IRC for cracked and uncracked concrete per ICC-ES ESR-3037
Code listed under IBC/IRC for masonry per IAPMO UES ER-240
Qualified for static and seismic loading conditions (seismic design categories A through F)
Suitable for horizontal, vertical and overhead applications
Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-metal deck thickness of 2 1/2" and 3 1/4"
Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
Tested per ACI355.2 and AC193
1. Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified minimum hole depth, and blow it clean using compressed air. (Overhead installations need not be blown clean.) Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling.
2. Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor. Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.
Tighten to the required installation torque.
Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor
Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity
Sold by the box, 4 boxes/case, Simpson Strong-Tie Brand
