STB2-37700
  • STB2-37700

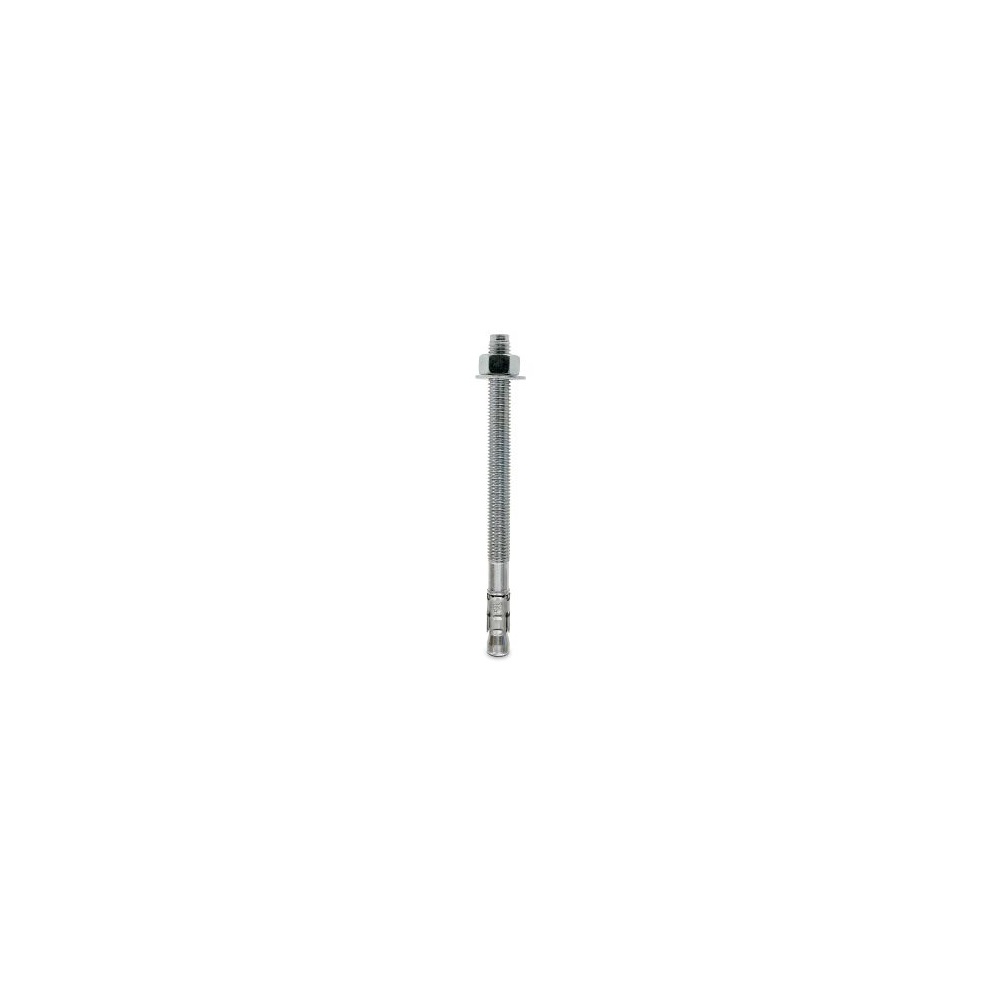

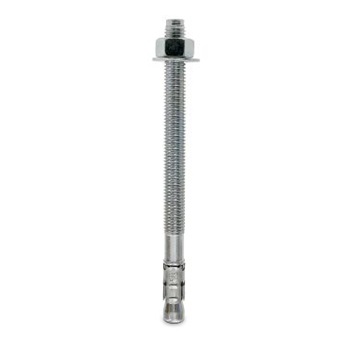

Simpson Strong Tie 7" Length x 3/8" Strong Bolt 2 Wedge Anchor, Carbon Steel, 50/box, STB2-37700

Deltek Item #SMSTB2-37700

$37.52

7" length x 3/8" Strong Bolt 2 wedge anchor, zinc plated carbon steel, 3/8" drill bit diameter, 5-9/16" thread length

Component Material Anchor Body: Carbon Steel

Component Material Nut: Carbon Steel ASTM A 563, Grade A

Component Material Washer: Carbon Steel ASTM F844

Component Material Clip: Carbon Steel ASTM A 568

Key Features:

Code listed under IBC/IRC for cracked and uncracked concrete per ICC-ES ESR-3037

Code listed under IBC/IRC for masonry per IAPMO UES ER-240

Qualified for static and seismic loading conditions (seismic design categories A through F)

Suitable for horizontal, vertical and overhead applications

Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-metal deck thickness of 2 1/2" and 3 1/4"

Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes

Tested per ACI355.2 and AC193

Installation:

1. Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified minimum hole depth, and blow it clean using compressed air. (Overhead installations need not be blown clean.) Alternatively, drill the hole deep enough to accommodate embedment depth and dust from drilling.

2. Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor. Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.

Tighten to the required installation torque.

Caution:

Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor

Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity

Sold by the box, 4 boxes/case, Simpson Strong-Tie Brand
